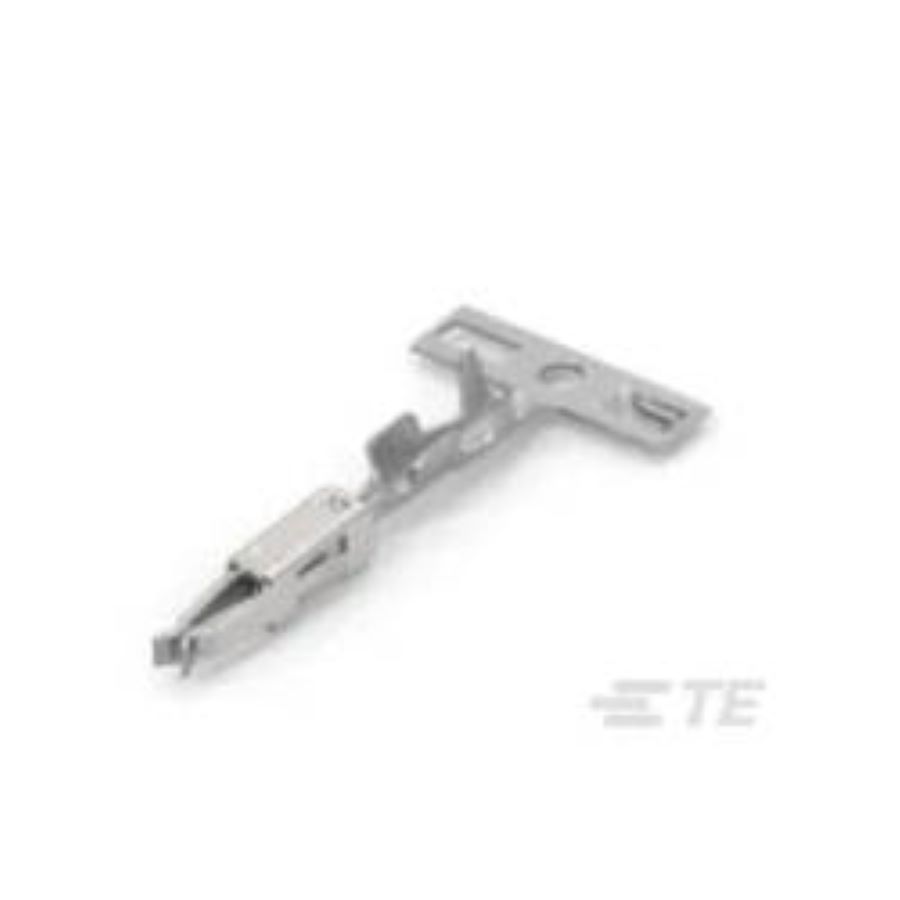

964261-2
Manufacturer:
TE Connectivity
Mfr.Part #:
964261-2
Datasheet:
Description:
Automotive Connectors Cable Accessory Type:Timer Contact Number of Positions:1 Receptacle 24 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 19.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 248 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.9 mm |
| Packaging | Reel |
| Depth | 2.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 10 A |
| Approvals | IEC, VDE |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle |
| Shielding | Unshielded |
| Connector Type | Connector, PCB, Receptacle, Signal |
| Number of Positions | 1 |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 20 AWG |
| Insulation Diameter | 1.4 mm |
| Mating Tab Width | 1.6002 mm |
| Tab Thickness | 600 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Accessory Type | Timer Contact |
| Wire Gauge Range | 24 AWG to 20 AWG |
Stock: 8652
Distributors
pcbx
pcbxUnit Price$0.61652
Ext.Price$0.61652
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61652 | $0.61652 |
| 10 | $0.30826 | $3.08260 |
| 50 | $0.23712 | $11.85600 |
| 100 | $0.18240 | $18.24000 |
| 500 | $0.14031 | $70.15500 |
| 1000 | $0.10793 | $107.93000 |
| 3000 | $0.08302 | $249.06000 |
| 5000 | $0.06386 | $319.30000 |
| 10000 | $0.05694 | $569.40000 |
